Prepainted Steel Coil(PPGI, PPGL)

Stainless Steel Pre-Painted Coils  presentation

Stainless Steel Pre-Painted Coils


Stainless Steel Pre-Painted Coils: A novel composite material combining stainless steel strength/aesthetics with polyester coating's weather/corrosion resistance.
- Eco-Friendly: 100% recyclable, zero environmental harm.
- Performance: Stable properties, high strength, low thermal expansion coefficient, excellent corrosion resistance.

Color Coated Stainless Coils


Substrate Steel coil
Grades 304/304L/316/316L/410/420/430, etc.
Composition: 91% Zinc,6% Aluminum,3% Magnesium
Thickness Range: 0.2mm to 2.0 mm
Width Range: Max 1500mm
Paint System: Polyester(PE),HDP, SMP, PVDF
Color Options: RAL color (custom color available)
Paint Thickness Top paint:10-35μm , Back paint: 5-25 μm
Surface Finish: mirror finish,embossing,frosted/matte finish,brushed finish
Custom Available in custom sizes, coatings, and finishes.

Related images

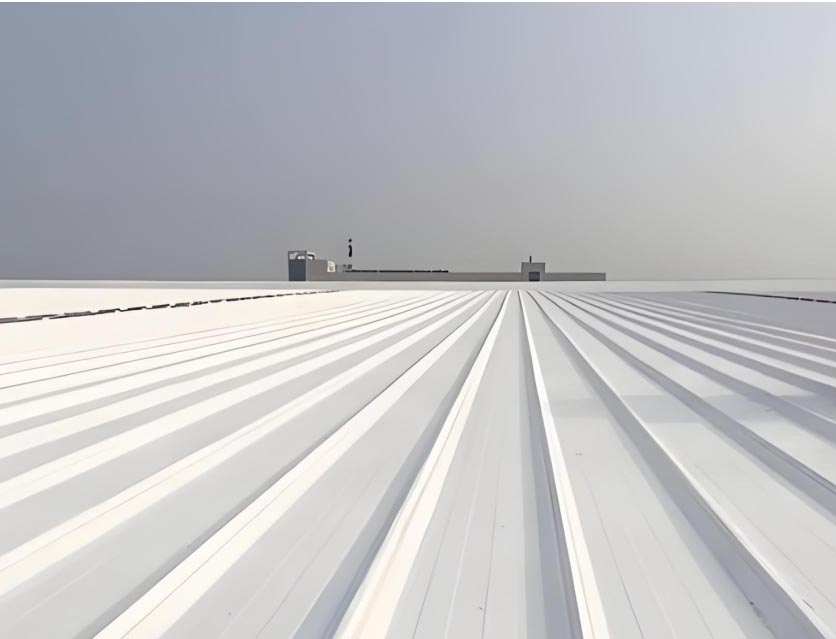

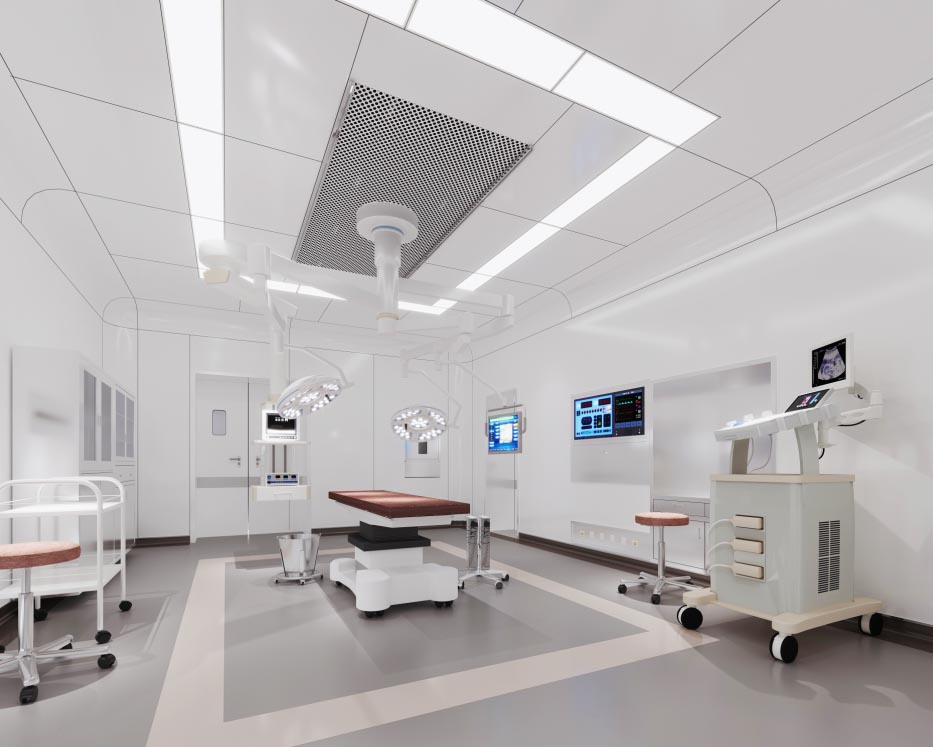

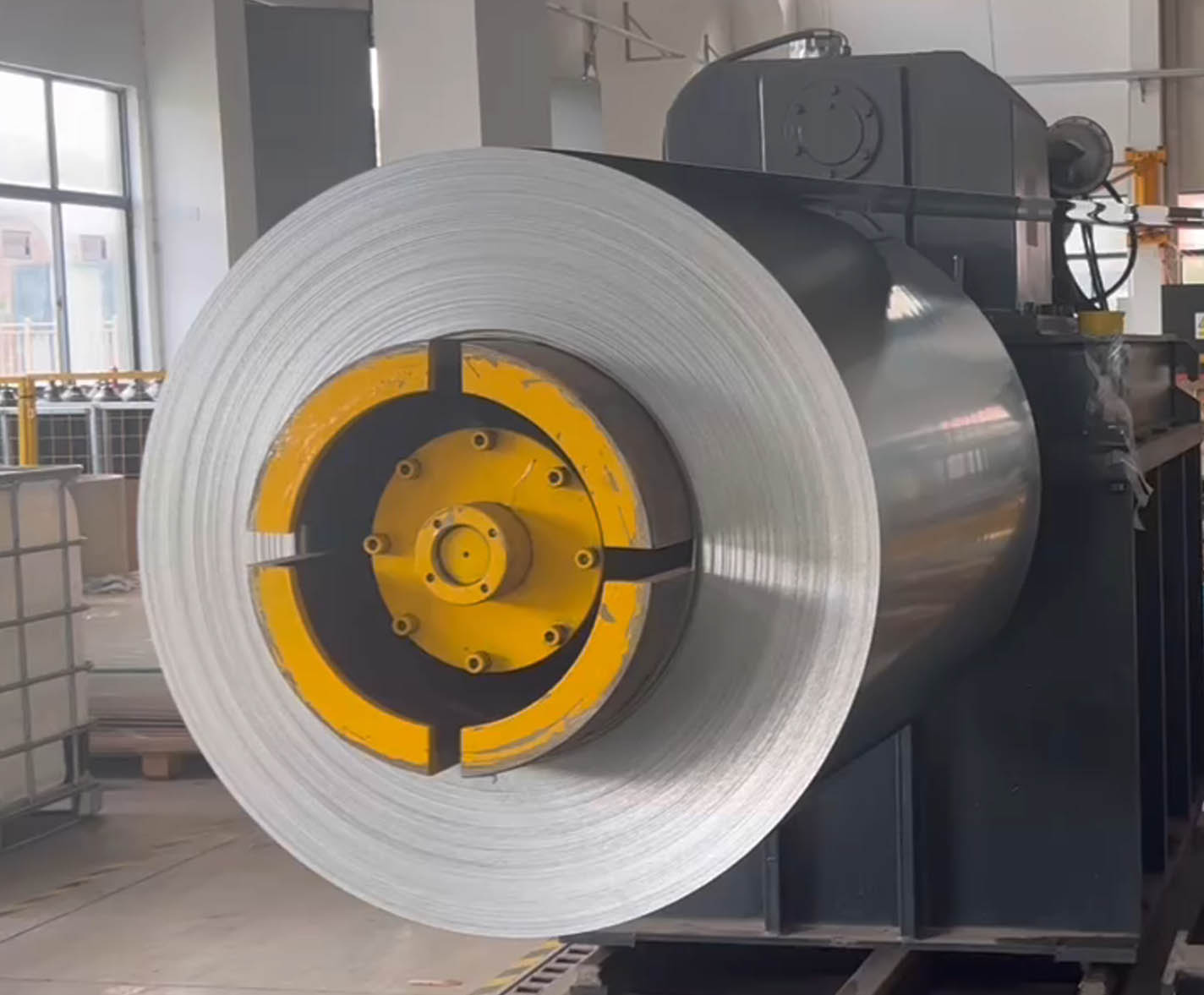

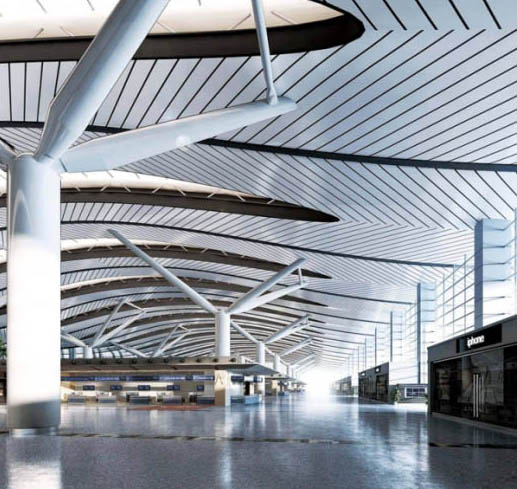

Operating room Roof Airport subway Stainless steel coil



Features




1. Weather & Corrosion Resistance: Polyester coating effectively shields against UV rays, chemical exposure, and harsh environments, ensuring substrate protection.
2. Strength & Aesthetic Flexibility: Combines stainless steel’s high structural integrity with vibrant polyester color options for diverse design demands and enhanced visual appeal.
3. Lightweight & Fabrication Ease: Ideal for transportation applications (e.g., automotive,train interiors,exteriors) due to low weight, high strength, and excellent formability.

Applications of Stainless Steel :
1. Construction Industry: Widely used for roofing, wall cladding, and decorative materials, leveraging its corrosion resistance and aesthetic appeal for modern architectural designs.
2. Appliance Manufacturing: Ideal for refrigerators, washing machines, and other household appliances due to wear resistance, easy-to-clean surfaces, and sleek finishes.
3. Transportation : Applied in automotive and train interiors/exteriors, benefiting from lightweight properties, high strength, and ease of fabrication for versatile design solutions.

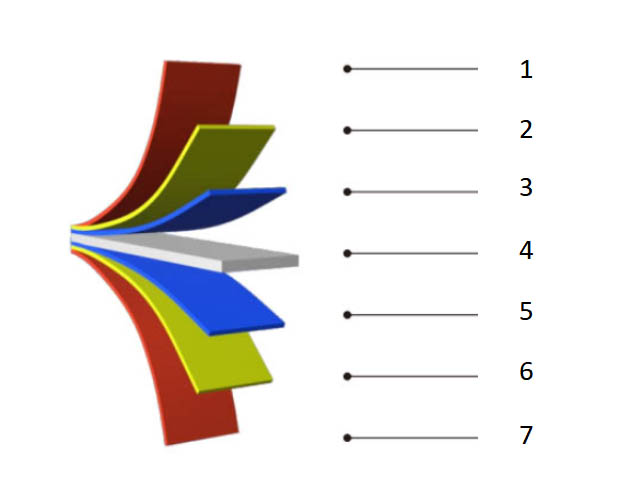

Stainless Steel Coil Coating Structure


1. Stainless Steel Color Coating Layer
2. Chemical Conversion Layer
3. Stainless Steel Passivation Layer
4. metal substrate
5. Secondary Passivation
6.Chemical Conversion Layers
7. Stainless Steel Color Coating Layer



Standard Colors




we can customize the color according to you sample,the following colors are just examples


Sky blue Peacock blue Light blue Bright red Brick red Orange Broadleaf green Deep bean green








Dull grey Silver grey Silvery Spotlessly white Ivory tint Medium grey Aged patina


More Color







Electrostatic Powder Coating Coils
