PET film laminated steel coil
Laminated Pre-Painted Coils: Innovation Meets Versatility.
Zhongwei advanced laminated coils utilize structural film-reinforced composite technology with aluminum foil metal components, delivering exceptional performance:
Specifications:
Substrate: |
GI(AZ),GL (Z),Aluminum,Stainless |
Thickness Range: |
0.25mm to 2.0mm |
Width Range: |
580mm to 1500mm |
Film Thickness |
40um-150um |
Diameter: |
Φ508 mm,Φ610 mm |
Coil Weight: |
3-25 ton |
Film Option: |
PET,PVC,ASA,PVDF,TPO or custom |
Film Color Options: |
RAL color (custom color available) |
Custom: |
Available in custom sizes,and finishes. |
Related images
|
|
|
|

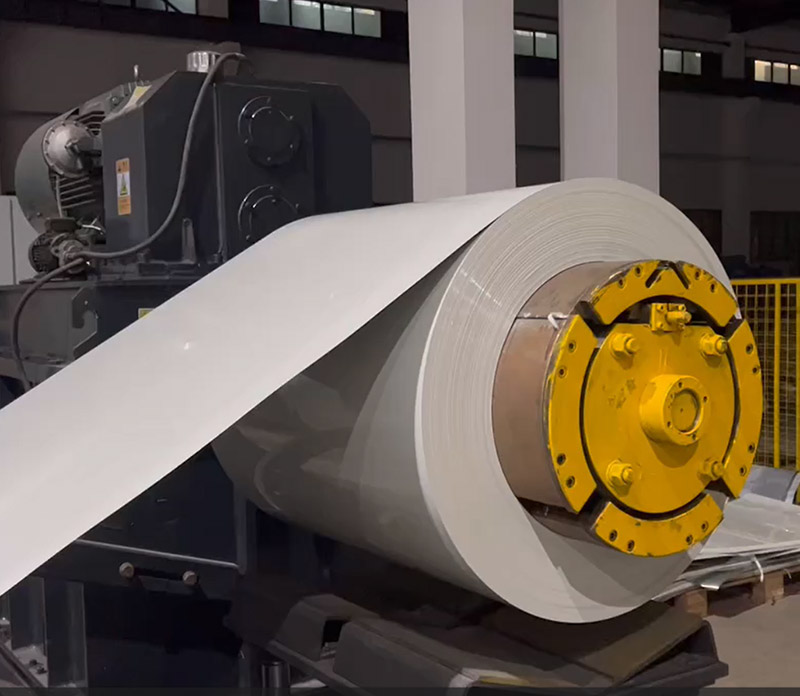

| White Ash |

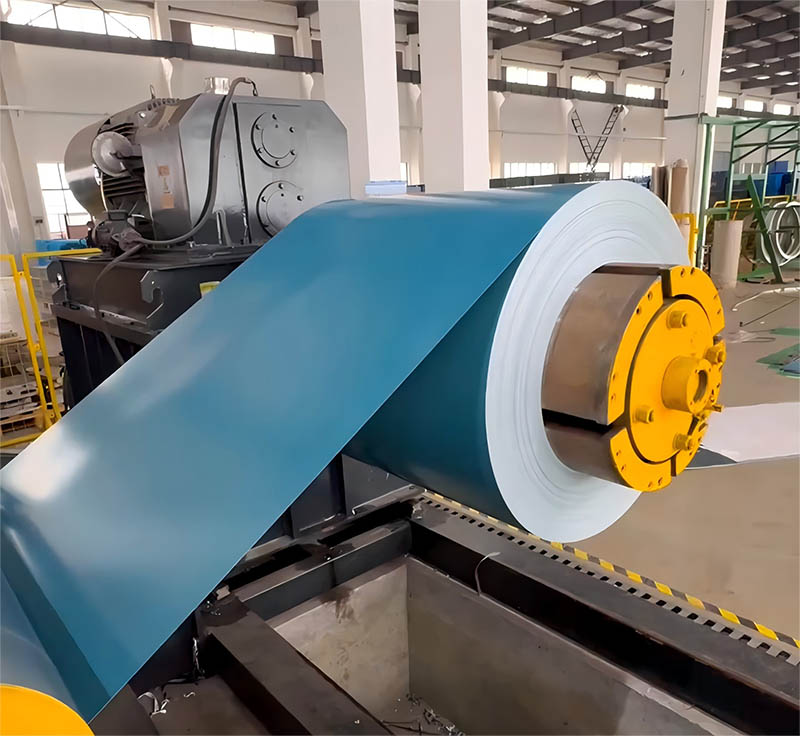

Sky blue |

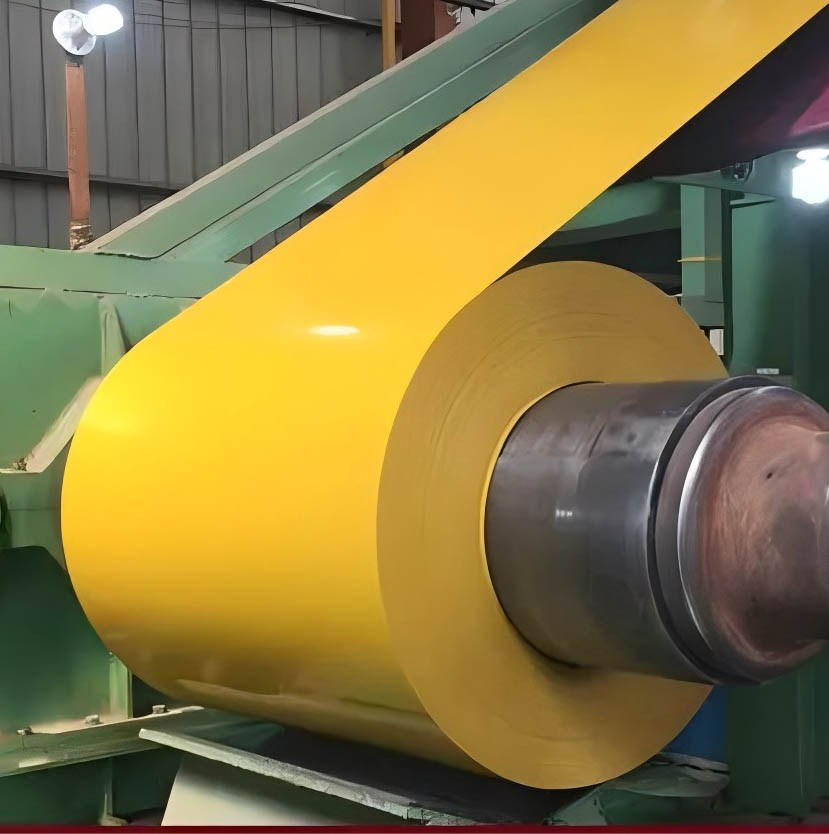

Yellow |

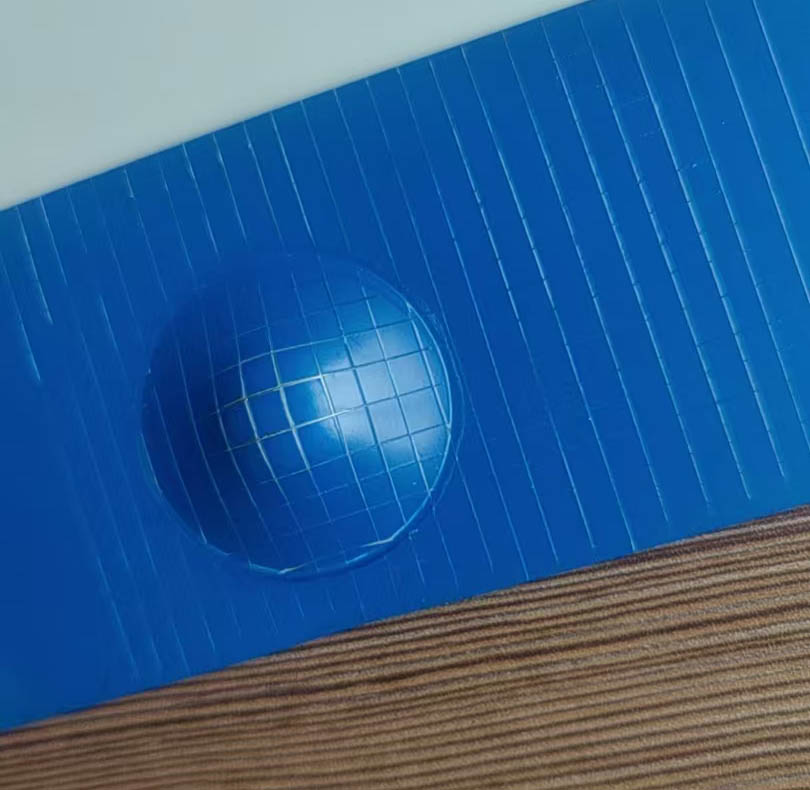

PET scratch test |
Features
Engineered with advanced surface treatment technologies, our laminated coils offer:
- Aesthetic Excellence: Uniform color consistency, refined textures, and premium finishes to meet diverse design needs.
-Durability: Designed for outdoor longevity with a service life exceeding 30-50+ years, ensuring reliability in harsh environments.
- Customization: Available in a broad spectrum of colors tailored to client specifications.
- Surface Layer: Superior aging/corrosion/chemical resistance and 100% barrier protection against environmental degradation.
- Substrate: Enhanced electrochemical corrosion resistance mechanism, significantly extending substrate fracture corrosion resistance standards.
- Material Integrity: Maintains original steel yield strength, hardness, and safety properties.
- Formability: Excellent deep-processing adaptability for customized fabrication in diverse industrial applications.
Market Positioning
| Material |
Alternate Names |
Market Positioning |
PET |
Polyester-coated sheets, Gloss steel |
Mid-to-high-end appliances, interior decor (e.g., refrigerator panels, elevator interiors). |
PVC |
PVC laminated sheets |
Budget construction (temporary structures, industrial roofing), fading from premium markets. |
ASA |
Weather-resistant sheets, ASA alloy sheets, |
Automotive exteriors, outdoor signage (long-term color retention). |
PVDF |
Fluorocarbon-coated sheets |
Premium architectural cladding (e.g., airport roofs, coastal infrastructure). |
TPO |
Flexible TPO sheets |
Solar panel backings, cold storage walls (low-temperature resistance), green buildings. |
Applications:
Widely used in construction, chemical processing, metallurgy, prefabricated buildings, corrosion,waterproofing systems, solar energy (PV), stainless steel integrations, smart home systems, glass curtain walls, and door/window materials.
Standard Colors
we can customize the color according to you sample,the following colors are just examples
|
|
|
|
|
|
|
|
| Sky blue |
Peacock blue |
Light blue |
Bright red |
Brick red |
Orange |
Broadleaf green |
Deep bean green |
|
|
|
|
|
|
|
|
| Dull grey |
Silver grey |
Silvery |
Spotlessly white |
Ivory tint |
Medium grey |
Aged patina |
|
More Color
