Film |
Substrate |
Coating Layer |
Process Method |
Key Process Parameters |
Distinctive Features |
PET |
Galvanized Steel, Aluminum |
PET Film (Single/Multi-Layer) |
Hot Pressing or Adhesive Bonding |
Temperature: 150-200°C |
High transparency, glossy/matte finishes. |
PVC |
Cold-Rolled Steel, Galvanized Steel |
PVC Film (with Plasticizers) |
Calendering or Extrusion |
Requires stabilizers for heat resistance |
Low cost, but eco-unfriendly (chlorine content). |
ASA |
Aluminum, Galvanized Steel |
ASA Film (Weather-Resistant) |
Co-Extrusion |
Direct application without adhesives |
Superior UV resistance, color stability. |
PVDF |
Stainless Steel, Titanium-Zinc |
PVDF Film (Fluoropolymer) |
High-Temperature Curing |
Temperature: 220-250°C |
Exceptional weather resistance (>20 years). |
TPO |
Aluminium-Zinc Coated Steel |
TPO Film (PP/PE Blend) |
Thermal Lamination or Extrusion |
High flexibility, low-temperature tolerance |
Impact-resistant, recyclable. |
Industrial Applications

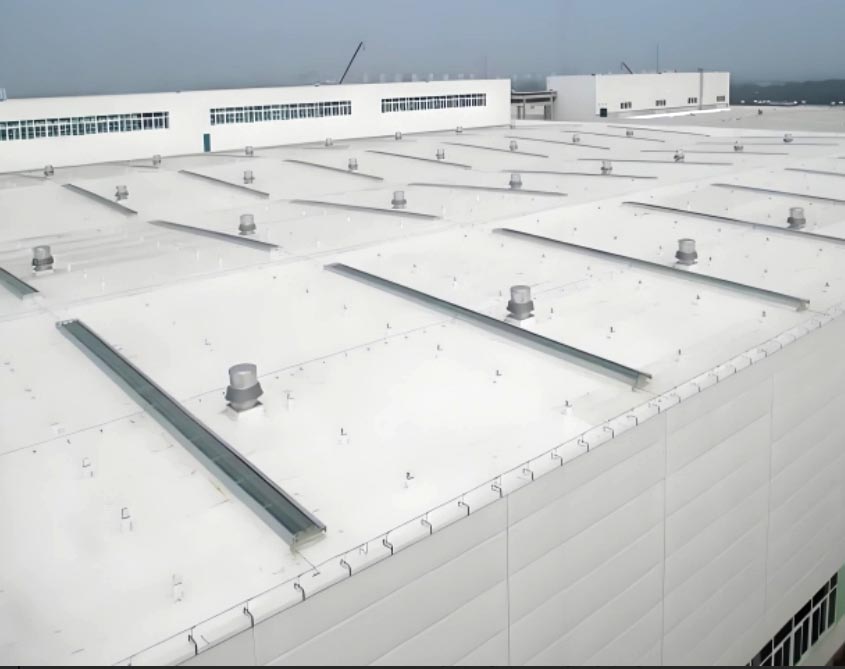

Manufacturing: Factory roofs, cleanrooms ,Zero-maintenance waterproofing.
Warehousing: Cold storage, logistics centers ,Thermal bridging elimination.
Energy: PV-integrated roofing ,30% faster solar array deployment.
Agriculture: Processing facilities ,Chemical splash resistance.
Sustainable Solution
- 40% recycled content in TPO membrane (CRADLE TO CRADLE Silver)
- 100% recyclable panel system
